MC SUPER HI-PRESSURE DOUBLE VICE PNEUMATIC VISE

Super high gripping force

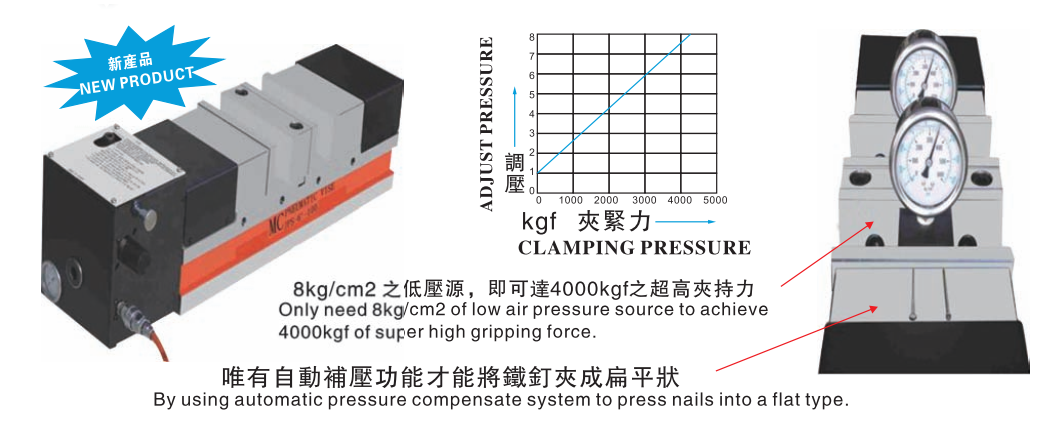

Only need 8kg/cm2 of low air pressure source to achieve 4000kgf of super high gripping force.and this gripping force can be adjusted with in 0-4000kgf by using a pressure regulator.
Find the highest air pressure point automatically
When processing copper,aluminum or heavy machining raw cast iron workpiece,the pressure regulator can be set at a desired pressure without losing pressure,besides,the gripping force can be kept to clamp the workpiece securely by auto compensating and pressure stabilizing functions
The biggest safety clamping range
The shifting speed is only 1.5 second.the double vise mechanism can be adjusted automatically and can simultaneously clamp two different workpieces in less than 5mm of size.
Super rigid material
The body of the vice is integrally made of high tensile graphite casting iron(FCD 60)and is harden by heat treatment(HRC 50)at its two slide way,thereby ensuring high precision,high durability and high tensile.
Submersed angle fixed pressed down structure
Submersed angle pressed structure in a semi-sphere shape to produce an angle lock power,thus preventing the cutting plate from movement.

About Omatei company

Kunshan Omatei Mechanical and Electrical Equipment Co., LTD has been specialized in precision manufacturing for over ten years. We produce various kinds of soft jaws which can be matched with chucks made in Europe and America or China Etc. as well high precision hydraulic power chucks and manual chucks, and other special non standard fixture products on CNC machine tools.
Our productions
For chuck jaws, We have standard serration pitch of soft jaws such as 1.5x60°, 1.5x90°, 2.5x90°, 3.0x60°, 1/16x90°, 3/32x90°, Non-standard specification can be made according to customers’ different demand, we can also produce aluminum, nylon, brass and stainless steel material jaws, Our company has developed supper light alloy soft jaws which weight is only one third of the regular types, this product can not only prevent from deformation issue of thin wall tube workpiece during the clamping process, but effectively improve centrifugal force of the chuck as well.

For hydraulic power chucks, we have been making the standard specification power chuck and rotary cylinders, our power chuck body accuracy can meet within 0.01mm, the rigidity and wearing resistance quality is very good. The cost performance is very competitive. For special using chucks, we have collet chucks, index chucks, scroll chucks, chucks with built-in cylinders, pin arbor chucks, our company also provide OEM and ODE service on chucks and rotary cylinders products
We also produce and sell live centers, vises, rotary table, self centering steady rest, non-standard chucks, T-nut, hard jaws, jaw boring rings, adapter plates, BT pull studs, ER collet, milling chucks, and many accessories of tools machine.

Quality assurance

About the quality assurance, we promise our products 100% inspected and 100% qualified before shipping out, In case of quality defects before customer using, buyer should notify Omatei within a week after receiving it, Omatei is responsible for the freight charge of returning and re-sending. Buyer should package the goods firmly for returning transportation safety. If buyer need changing to other goods before use, we can agree on this under the condition of buyer paying all the freight cost.
Company Objective
To provide you the professional solution of chuck series products, your satisfaction is our responsibility and motivation.
