F363 MEDIUM DUTY PRECISE SMALL DIAMETER LONG NOSE LIVE CENTER
Type: Live centers series
Duty: Medium
Application CNC lathe, high speed lathe and other lathe
Working Usage Applicable for small diameter and length less than 300mm medium turning process
Structure: Adopted thrust bearing and needle bearing at front and rear place, with the design of two supporting point
TIR: Less than 0.002mm

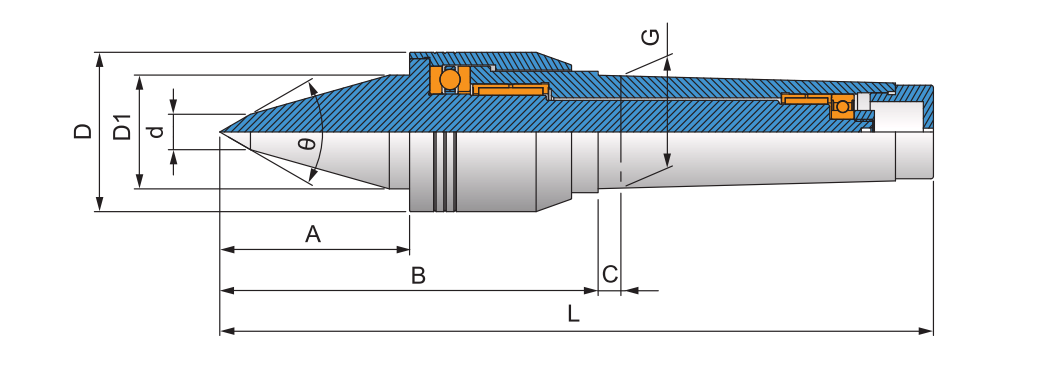

Specification UNIT:mm

REMARKS
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
