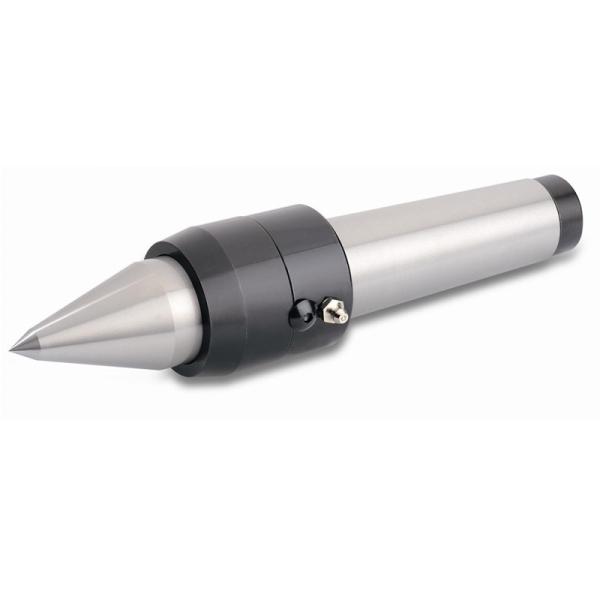

TSC-663 HEAVY DUTY STRONG LONG NOSE LIVE CENTER

Type: Live centers series
Duty: Heavy

Application: CNC lathe, high speed lathe, gear hobbing machine

Working Usage: Applicable for high pushing force stong turning process,and slender workpiece turning process

Structure: Combination of thrust bearing with enhanced axial load design and needle bearing at front and rear place for radial load

TIR: Less than 0.002mm

Specification UNIT:mm

REMARKS

1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks
2, if "A" is behind the center model name,it denotes a draw-off nut attached.

3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.
