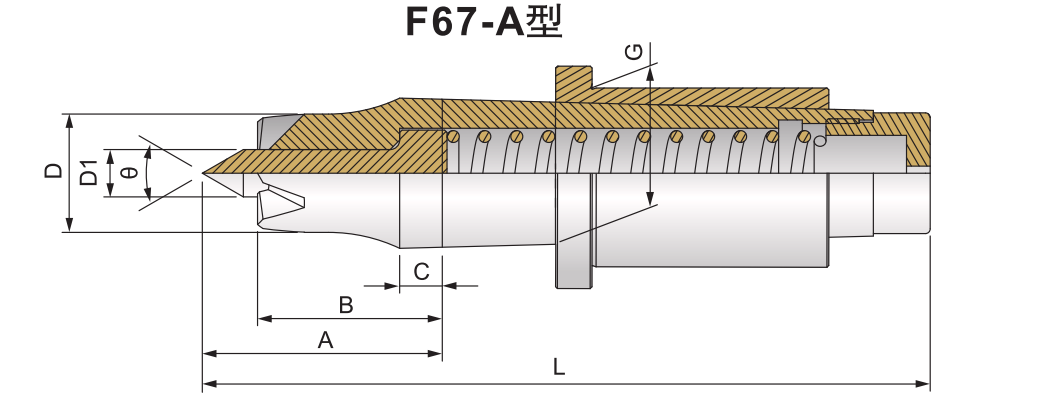

F67-A FIXED POINT FACE DIVER

Type: Face driving center,Dead driving head type

Application: CNC lathe and high speed lathe and auto feeder and gear hobbing machine or other machine tool.

Characteristics: Before using this center, Please machine the workpiece ends at first,it can be used to turn forward or reverse direction. it's suitable for front and rear synchronous turning so as to the turning process can be finished by one-time. different size center cone is available, So, it's convenient and cost saving.

Note: Face driving by the enough pressure from the tailstock, stonger pressure, stronger driving force.

Accessories: MT4 sleeve

Specification UNIT:mm TIR:<0.005mm

Customized order can be accepted.

Subject to technical changes.

Production Catalogue Download:

Accessories for Centers

Manual and Technical instruction for Centers
