    RA-B DOUBLE ROD PISTON ROTATING AIR CYLINDER

    Ask Lasest Price
    Brand Name : NTH
    Model Number : RA-130B,RA-160B,RA-200B,RA-250B,
    Payment Terms : T/T, Western Union
    Supply Ability : 1000 sets/M
    Delivery Time : 3 work days available
    Price : Negotiation
    • Product Details
    • Company Profile

    RA-B DOUBLE ROD PISTON ROTATING AIR CYLINDER

    RA-B DOUBLE ROD PISTON ROTATING AIR CYLINDER

    Brand:NTH

    Light weighe and high rotating speed,special designed valve which economize air consumption the cosl is saved.
    The compononts of cylinder is imported and high quality,equilibrium running and long service life.
    For special large through hole be customized according to your requirements.
    During using,a little oil mist should be contalned.

    Size unit: mm

    Spec
    Model
    Piston area cm2
    Extend
    Piston area cm2
    Retract
    Piston stroke
    mm
    Max RPMMax.Operating Pressure
    Mpa(kgf/cm2)
    For ChuckWeight
    kg
    RA-130B251.2247.91240000.8(8)5"6"8
    RA-160B380.8369.72540000.8(8)6"8"12
    RA-200B606.8595.83035000.8(8)10"17
    RA-250B9609493530000.8(8)12"16

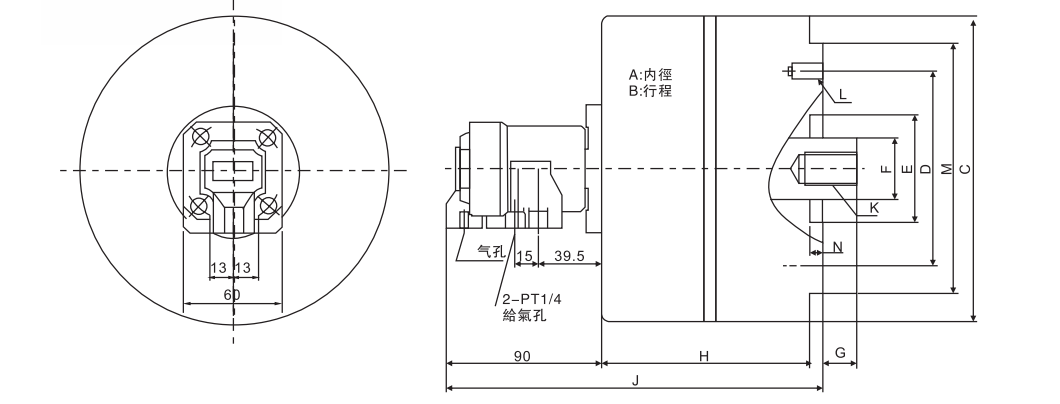

    Spec

    Model

    ABCD

    E

    H7

    F

    G

    Max

    G

    Min

    HJKLMN
    RA-130B130121609065252715113221M16×256-M10×201004
    RA-160B16025195125100404015135243M20×356-M10×201605
    RA-200B20030232160125404414147255M20×356-M12×201926
    RA-250B2503528520016040427158266M20×3512-M12×2023510

    Subject to technology changes without prior information
    Non-standard requirements can be made


    Production Catalogue Download:RA-B Series.pdf
