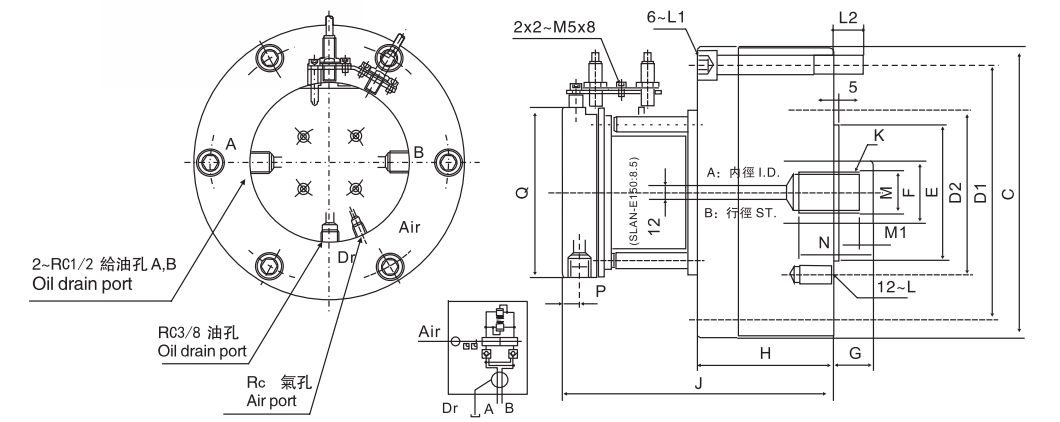

SLAN-E COMPACT STYLE HYDRAULIC CYLINDER WITH AIR CONNECTION AND SAFETY DEVICE

Brand:NTH

For short from,lightc weight and high speed rotary cylinder.To allow compressed air to be feed from the rear end of the distributor through the rotating union.suitable for vertical lathe.
Built-in safety check valves,pressure relief valves and proximity seneor.
Can screw it from the rear end of the cylinder when mounting.
The drain port should be independently connectde to oil tank to avoid back pressure.
When used,a little oil mist should be contained.

Size unit: mm

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:SLANE Series.pdf
