SC-91 INTERCHANGEABLE LIGHT DUTY LIVE CENTER

Type: Interchangeble live center
Duty: Light

Application Ordinary lathe (without waterproof function, can't be used to CNC lathe)

Working Usage Applicable for ordinary turning process.

Structure Made of alloy steel and hardened to HRC 57-60, ground on ID and OD.

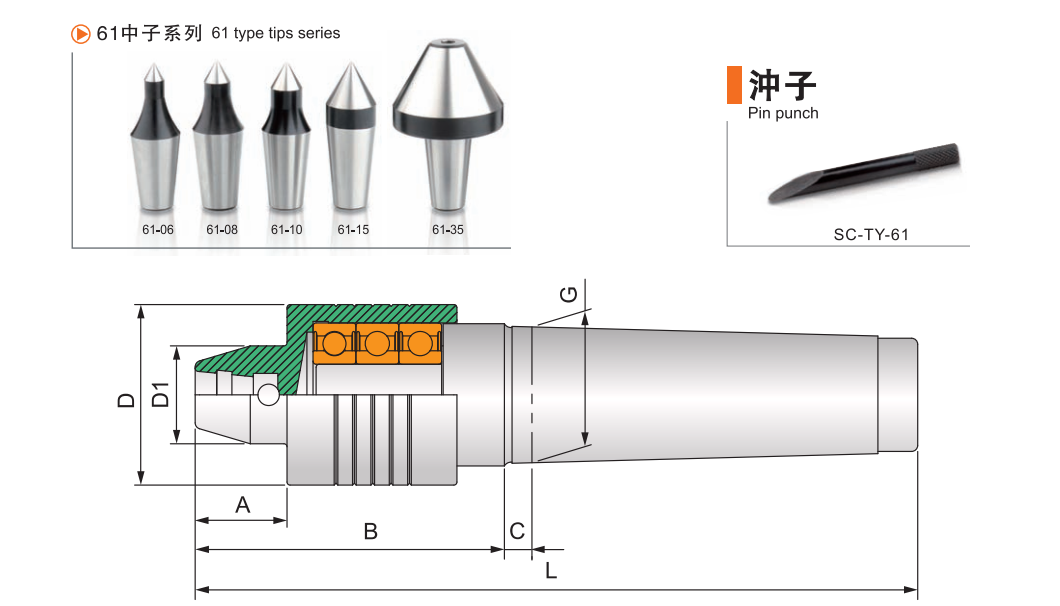

Accessories 61 type Tips and 61 type pin punch.

TIR Less than 0.005mm

Specification UNIT:mm

REMARKS

2,if "A" is behind the center model name,it denotes a draw-off nut attached.
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowedRemarks

3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
