Brand Name : | NTH |
Model Number : | SC-48-M-2,SC-48-M-3,SC-48-M-4 |
Payment Terms : | T/T, Western Union |
Supply Ability : | 1000 sets/M |
Delivery Time : | 3 work days |
Price : | Negotiation |

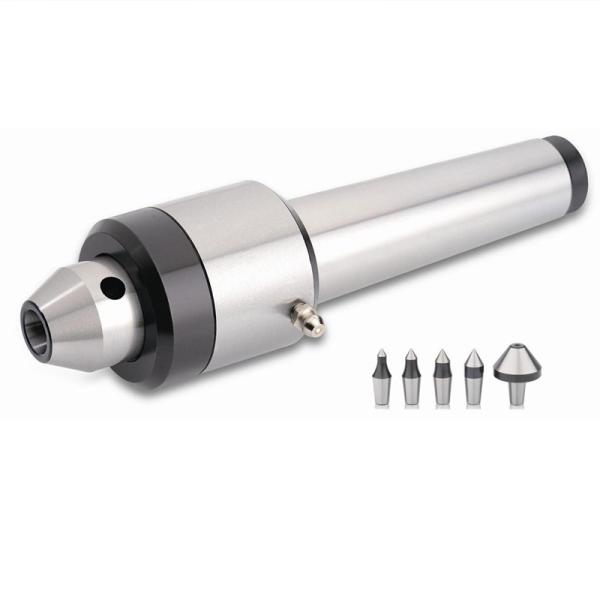

SC-48 INTERCHANGEABLE LIGHT DUTY LIVE CENTER
Type: Interchangeble live center
Duty: Light
Application CNC lathe and high speed lathe or center lathe.
Working Usage Applicable for ordinary small diameter high speed turning process.
Structure Combination of angular contact ball bearing and deep groove ball bearing.
Accessories 48 type Tips and 61 type pin punch.
TIR Less than 0.005mm

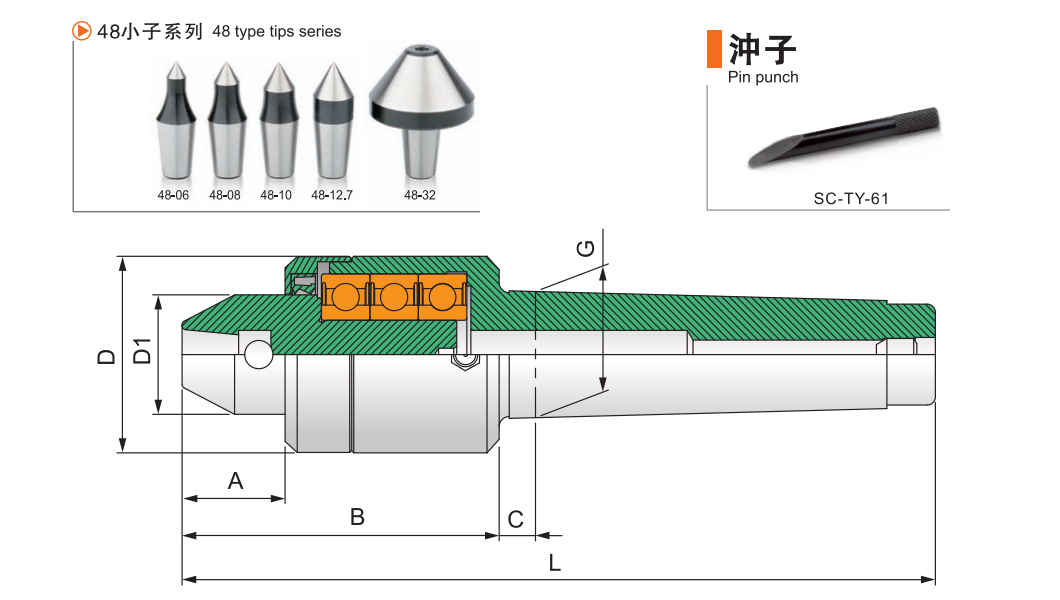

Specification UNIT:mm
Model/Spec | A | B | C | D | D1 | G | L | Max.RPM | Max. radial load |
SC-48-M-2 | 25 | 78 | 6 | 52 | 28.5 | 17.780(MT2) | 147 | 2,000rpm | 300kg |
SC-48-M-3 | 25 | 79 | 8 | 52 | 28.5 | 23.825(MT3) | 166 | 2,000rpm | 400kg |
SC-48-M-4 | 25 | 78 | 9 | 52 | 28.5 | 31.267(MT4) | 186 | 2,000rpm | 500kg |
Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't
allowedRemarks
2,if "A" is behind the center model name,it denotes a draw-off nut
attached.
3,About radial force data, please refer to workpiece weight and
machining force.
4,if "A" is behind the center interchangeable tip name,it denotes
the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure
data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is
waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.
