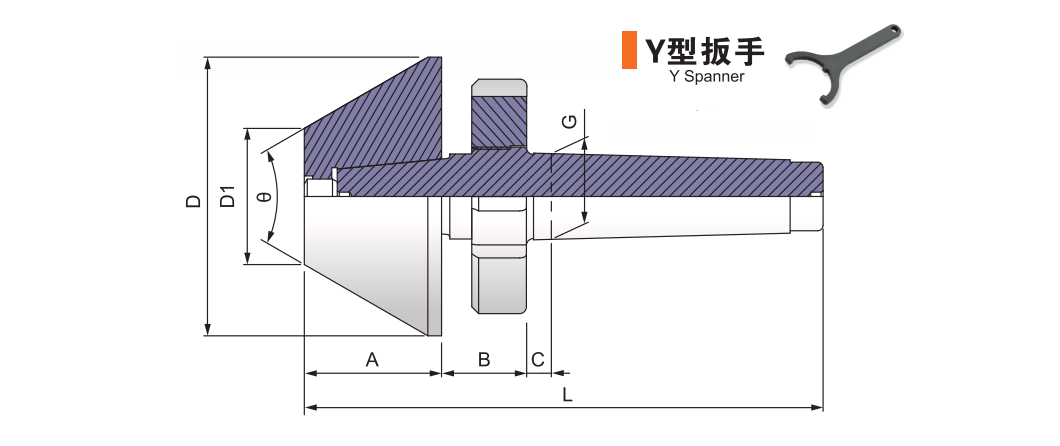

TSC-96880 CHANGEABLE BULL NOSE DEAD CENTER
Type: Bull nose centers,Interchangeable
Application: CNC lathe and other machine tool.
Working Usage: Applicable for big size inner diameter workpiece turning process.

Specification UNIT:mm TIR:<0.005mm

Customized order can be accepted.
Subject to technical changes.
Remarks
1, For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2, if "A" is behind the center model name,it denotes a draw-off nut attached.
3, About radial force data, please refer to workpiece weight and machining force.
4, if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5, About axial force data, please refer to the hydraulic pressure data of the tailstock.
6, For live centers, SKF lubricating oil is designated, it is waterproof.
7, Customized order can be accepted.
8, Subject to technical changes.

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.

Production Catalogue Download:
Accessories for Centers
Manual and Technical instruction for Centers

About Omatei company

Kunshan Omatei Mechanical and Electrical Equipment Co., LTD has been specialized in precision manufacturing for over ten years. We produce various kinds of soft jaws which can be matched with chucks made in Europe and America or China Etc. as well high precision hydraulic power chucks and manual chucks, and other special non standard fixture products on CNC machine tools.
Our productions
For chuck jaws, We have standard serration pitch of soft jaws such as 1.5x60°, 1.5x90°, 2.5x90°, 3.0x60°, 1/16x90°, 3/32x90°, Non-standard specification can be made according to customers’ different demand, we can also produce aluminum, nylon, brass and stainless steel material jaws, Our company has developed supper light alloy soft jaws which weight is only one third of the regular types, this product can not only prevent from deformation issue of thin wall tube workpiece during the clamping process, but effectively improve centrifugal force of the chuck as well.

For hydraulic power chucks, we have been making the standard specification power chuck and rotary cylinders, our power chuck body accuracy can meet within 0.01mm, the rigidity and wearing resistance quality is very good. The cost performance is very competitive. For special using chucks, we have collet chucks, index chucks, scroll chucks, chucks with built-in cylinders, pin arbor chucks, our company also provide OEM and ODE service on chucks and rotary cylinders products
We also produce and sell live centers, vises, rotary table, self centering steady rest, non-standard chucks, T-nut, hard jaws, jaw boring rings, adapter plates, BT pull studs, ER collet, milling chucks, and many accessories of tools machine.

Quality assurance

About the quality assurance, we promise our products 100% inspected and 100% qualified before shipping out, In case of quality defects before customer using, buyer should notify Omatei within a week after receiving it, Omatei is responsible for the freight charge of returning and re-sending. Buyer should package the goods firmly for returning transportation safety. If buyer need changing to other goods before use, we can agree on this under the condition of buyer paying all the freight cost.
Company Objective
To provide you the professional solution of chuck series products, your satisfaction is our responsibility and motivation.
