    PI6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS

    Ask Lasest Price
    Brand Name : NTH
    Model Number : PI6
    Payment Terms : T/T, Western Union
    Delivery Time : 3 work days
    Price : Negotiation
    Certification : CE
    • Product Details
    • Company Profile

    PI6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS

    Product Details


    Brand:NTH


    Model: PI6 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS


    Suitable for the production of parts with the highest concentricity.

    Widely used, especially for grinding machines, dividing heads and lathes.

    Adjusting accuracy within 0.005mm.
    Repeatability 0.015mm
    The clamped workpiece is adjusted to the required concentricity by mean of 4 or8 radially arranged adjusting screws.

    PI6 SERIES 6-JAW ADJUSTABLE PRECISION SELF-CENTERING CHUCKS

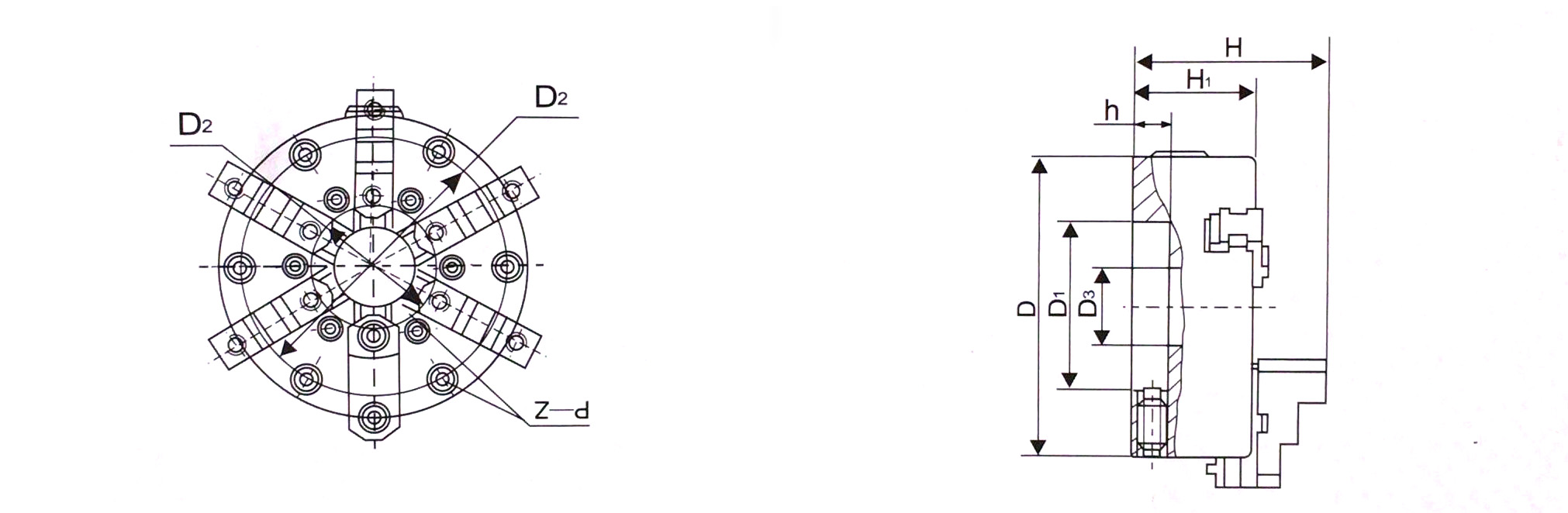

    (unit: mm)


    Chuck SizeDD1D2D3HH1hz-d

    Solid Jaws

    Cast iron body

    2-Piece Jaws

    Cast iron body

    12512760.33112.733395.75616.73-M6PI6-125PI6-125A
    5 in.52.3754.4381.2993.7682.2050.6573-1/4-20PI6-5"PI6-5"A
    160152.579.37135.73998.65917.56-M6PI6-160PI6-160A
    6 in.63.1255.3431.5353.8822.3230.6896-1/4-20PI6-6"PI6-6"A
    200210120.65190.557.5132.279.319.16-M10PI6-200PI6-200A
    8 in.8.274.757.52.2645.2063.1220.7526-3/8-16PI6-8"PI6-8"A
    250※254161.9111.1372153.888.720.46-M12PI6-250PI6-250A
    10 in.※106.3744.3752.8356.0563.4920.8036-7/16-14PI6-10"PI6-10"A
    335※305200.79133.3583166.9101.120.46-M12PI6-335PI6-335A
    12 in.※127.9055.253.2686.5693.980.8036-1/2-13PI6-12"PI6-12"A
    380※381299.237171.45108223.5136.2276-M16PI6-380PI6-380A
    15 in.※1511.7816.754.2528.7995.3621.0636-5/8-11PI6-15"PI6-15"A

    Note: Subject to technology changes without prior information;

    Non-standard requirements can be made.
