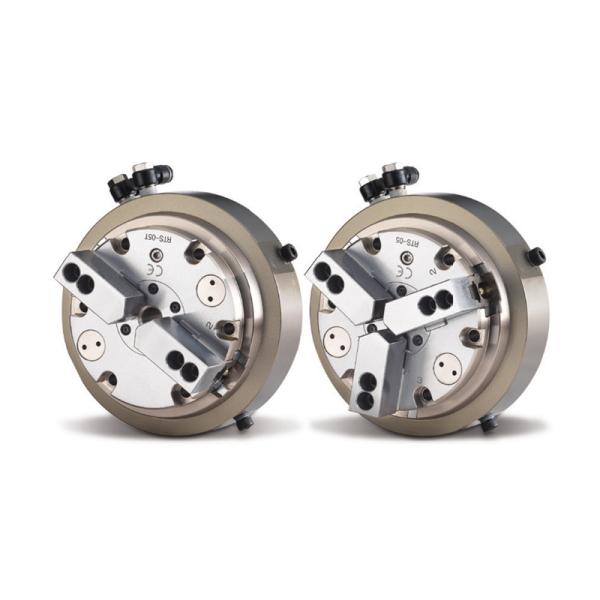

RTS ROTARY AIR CHUCK FIXTURES

Brand:NTH
Dust and water proof cover:
Design with Labyrinth Seal Rings, prevent the metal chips and coolant into the internal cylinder to guarantee chuck's performance and service life.
Built in check Valve:
Design with built in Check Valve. It's doesn't need to supply the air continuously and remain low working torque also reduce the air consumption.
Higher Rotation Speed:
The rotation speed from 100RPM to 180RPM, higher rotation speed to fit with more kind of working.
Integral pneumatic cylinder:
Connect chuck and built-in cylinder to each other directly;thus enables operation stability.Moreover, it is more convenient for installation and operation since the use of draw tube and draw bar are no longer necessary.
Rustproof treated cylinder:
The cylinder won’t get rusty and seized even in wet or high moisture working environment.

Subject to technology changes without prior information
Non-standard requirements can be made

Production Catalogue Download:

About Omatei company

Kunshan Omatei Mechanical and Electrical Equipment Co., LTD has been specialized in precision manufacturing for over ten years. We produce various kinds of soft jaws which can be matched with chucks made in Europe and America or China Etc. as well high precision hydraulic power chucks and manual chucks, and other special non standard fixture products on CNC machine tools.
Our productions
For chuck jaws, We have standard serration pitch of soft jaws such as 1.5x60°, 1.5x90°, 2.5x90°, 3.0x60°, 1/16x90°, 3/32x90°, Non-standard specification can be made according to customers’ different demand, we can also produce aluminum, nylon, brass and stainless steel material jaws, Our company has developed supper light alloy soft jaws which weight is only one third of the regular types, this product can not only prevent from deformation issue of thin wall tube workpiece during the clamping process, but effectively improve centrifugal force of the chuck as well.

For hydraulic power chucks, we have been making the standard specification power chuck and rotary cylinders, our power chuck body accuracy can meet within 0.01mm, the rigidity and wearing resistance quality is very good. The cost performance is very competitive. For special using chucks, we have collet chucks, index chucks, scroll chucks, chucks with built-in cylinders, pin arbor chucks, our company also provide OEM and ODE service on chucks and rotary cylinders products
We also produce and sell live centers, vises, rotary table, self centering steady rest, non-standard chucks, T-nut, hard jaws, jaw boring rings, adapter plates, BT pull studs, ER collet, milling chucks, and many accessories of tools machine.

Quality assurance

About the quality assurance, we promise our products 100% inspected and 100% qualified before shipping out, In case of quality defects before customer using, buyer should notify Omatei within a week after receiving it, Omatei is responsible for the freight charge of returning and re-sending. Buyer should package the goods firmly for returning transportation safety. If buyer need changing to other goods before use, we can agree on this under the condition of buyer paying all the freight cost.
Company Objective
To provide you the professional solution of chuck series products, your satisfaction is our responsibility and motivation.
