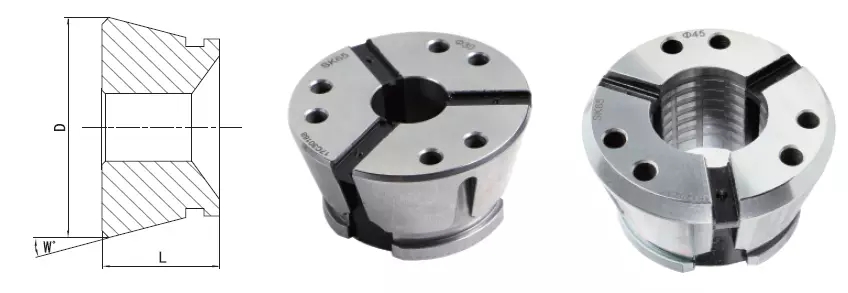

HIGH PRECISION SK32 SK42 SK52 SK65 SK80 SK100 SK120 RUBBER FLEX COLLET

SK series rubber flex collet quick grip collet

Collet Features:
1, Rubber elastic collets unique in design and operation, the rubber elastic collets can generate two to three times the gripping force of a conventional split steel collets.
2, Gripping force is uniform and parallel throughout the collets contact length and not concentrated at the nose or back as it is a common issue of the split steel collets. as the following picture shown.

Collets advantages
1, The rubber elastic collet's construction is of durable synthetic rubber compound permanently bonded to hardened steel jaws, it is unaffacted by heat, coolants and cutting chips and retains its flexibility over a long service life as compared to spring metal collets designs.
2, With a spring-type collet, unless the bore is exactly sized to the workpiece diameter there will be reduced contact, resulting in compromised accuracy and grip force.
3, With a rubber elastic collet, the segments always remain parallel to the workpiece,helping to maintain optimum accuracy and grip force.
4, Each collet segment is joined to the adjacent segments with vulcanized rubber.This ensures that the collet segments always remain parallel to the workpiece as the collet is compressed, and the gripping force is 3 times than the common spring split steel collet.
5, The one-piece construction ensures its flexibility and resists deterioration from heat, coolants and cutting chips.
6, All segments is cut from one piece collets, it has higher hardness and durability, so the gripping force and accuracy can't be matched by the spring split steel collets.
7, The rubber elastic collets can seal the workpiece and the machine spindle, so it can protect the workpiece from grinding material and cutting chips damage.
The rubber elastic collets steel hardness is HRC58-62, it is processed by cryogenic treatment.it can improve the collet's stability, the runout is less than 0.01mm, and the clamping range tolerance nominal diameter is +/- 0.5mm.

Subject to the different products spec and craft, and different exchange rate, The price here is just for your reference, please get the right price from our sales when you order.

About Omatei company

Kunshan Omatei Mechanical and Electrical Equipment Co., LTD has been specialized in precision manufacturing for over ten years. We produce various kinds of soft jaws which can be matched with chucks made in Europe and America or China Etc. as well high precision hydraulic power chucks and manual chucks, and other special non standard fixture products on CNC machine tools.
Our productions
For chuck jaws, We have standard serration pitch of soft jaws such as 1.5x60°, 1.5x90°, 2.5x90°, 3.0x60°, 1/16x90°, 3/32x90°, Non-standard specification can be made according to customers’ different demand, we can also produce aluminum, nylon, brass and stainless steel material jaws, Our company has developed supper light alloy soft jaws which weight is only one third of the regular types, this product can not only prevent from deformation issue of thin wall tube workpiece during the clamping process, but effectively improve centrifugal force of the chuck as well.

For hydraulic power chucks, we have been making the standard specification power chuck and rotary cylinders, our power chuck body accuracy can meet within 0.01mm, the rigidity and wearing resistance quality is very good. The cost performance is very competitive. For special using chucks, we have collet chucks, index chucks, scroll chucks, chucks with built-in cylinders, pin arbor chucks, our company also provide OEM and ODE service on chucks and rotary cylinders products
We also produce and sell live centers, vises, rotary table, self centering steady rest, non-standard chucks, T-nut, hard jaws, jaw boring rings, adapter plates, BT pull studs, ER collet, milling chucks, and many accessories of tools machine.

Quality assurance

About the quality assurance, we promise our products 100% inspected and 100% qualified before shipping out, In case of quality defects before customer using, buyer should notify Omatei within a week after receiving it, Omatei is responsible for the freight charge of returning and re-sending. Buyer should package the goods firmly for returning transportation safety. If buyer need changing to other goods before use, we can agree on this under the condition of buyer paying all the freight cost.
Company Objective
To provide you the professional solution of chuck series products, your satisfaction is our responsibility and motivation.
