TSC-665 INTERCHANGEABLE HEAVY DUTY STRONG LIVE CENTER

Type: Interchangeble live center
Duty: Heavy

Application CNC lathe and high speed lathe or other lathe.

Working Usage Applicable for ordinary strong turning process.

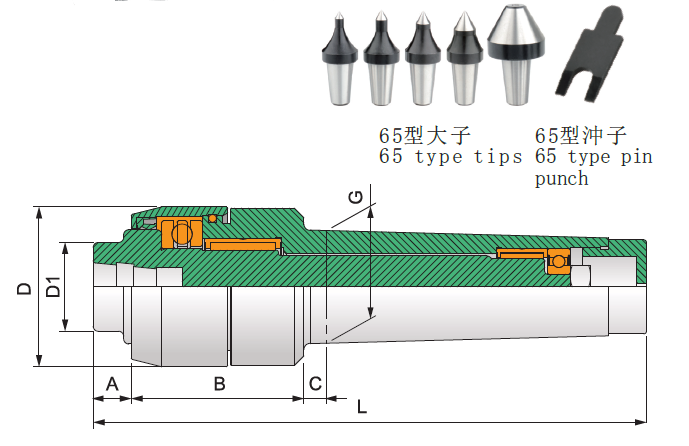

Structure Combination of thrust bearing with enhanced axial load design and needle bearing at front and rear place for radial load.

Accessories 65 type Tips and 65 type punch.

TIR Less than 0.005mm

Specification UNIT:mm

Remarks
1,For the lubricating oil,SKF-LGMT2 is designated,others aren't allowed
2,if "A" is behind the center model name,it denotes a draw-off nut attached.
3,About radial force data, please refer to workpiece weight and machining force.
4,if "A" is behind the center interchangeable tip name,it denotes the tip is extended length.
5,About axial force data, please refer to the hydraulic pressure data of the tailstock.
6,For live centers, SKF lubricating oil is designated, it is waterproof.
7,Customized order can be accepted.
8,Subject to technical changes.

Inspecting the run out accuracy of the center tip must be under the status of holding the workbar tightly.
